Graphical printout from Schedule Screen

ScheduleMenuPrint

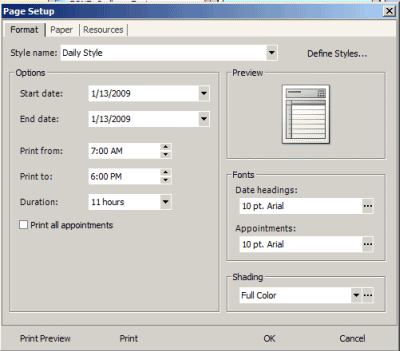

Select the SchedulePrintGraphical Print menu option to bring up the Page Setup window where you can select the Style Name:, Start Date and End Date, the time range, and if a specific resource.



SchedulePrintGraphical2



NOTE: This Print graphical option requires that you specifically state what you want to print in this Page Setup before you can preview or print. It does not rely on what you were showing in the Schedule screen nor what you selected in the Schedule screen.

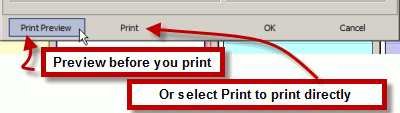

We encourage you to try different Styles, etc to get the graphical print out you want. Preview to see what it looks like.



SchedulePrintGraphical9



See also:

How do I print out a graphical day view of the Schedule?





Identification of fields of the Page Setup window:





Format tab:



Style Name:

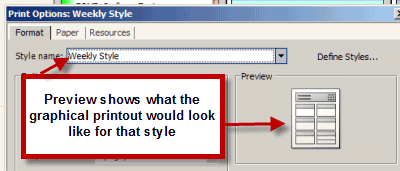

This identifies what view type you want printed out - and you can see in the Preview graphic a representation of what it would show

SchedulePrintGraphical3



SchedulePrintGraphical4



Start Date: and End Date:

Specify here the start and end date of the graphical view you want to print out.  For example, if you want to print out a Daily Style, then edit the start and end date to be the same date.



These dates always default to today's date. There is not a setting to change the default

SchedulePrintGraphical5



Print From: and Print To:

Specify the start and end time in these fields



These times default to 7:00AM to 6:00PM. These is not a setting to change the default.

SchedulePrintGraphical6



Duration:

This is tied to the Print From: and Print To: setting. If you select 12AM to 8AM for your Print From: and Print To: this would be 8 hours.





Resources tab:



The following is only applicable if using the full AyaNova version.

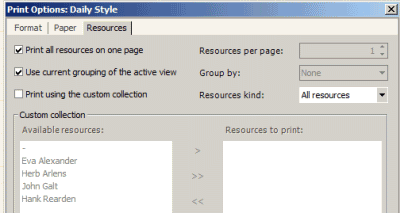

On first opening, this tab will default to print all the resources on the same page - scheduled items for all schedulable users .

SchedulePrintGraphical7

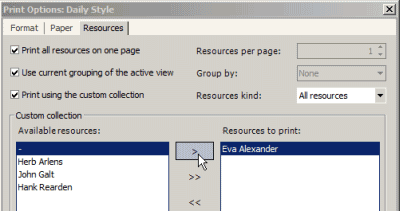

If instead you checkmark the Print using the custom collection:, you will be able to specifically select which resources (schedulable users) you want to print this graphical representation of the schedule screen range for.

SchedulePrintGraphical8
