Parts grid

<< Click to Display Table of Contents >>

Navigation:  Feature Details > Inventory > Parts >

Parts grid

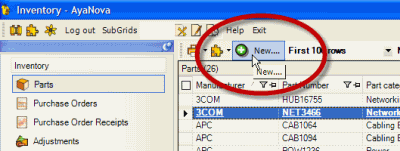

Parts are created by using the New1 New... menu option on the Parts grid



PartNew1



Or create a new part by selecting the Accelerator Keys combination ALT-p when viewing any main grid.



Or create a part while within a service workorder on the fly



Or import parts using the ImportExport.csv utility



Or import parts from your QuickBooks or Peachtree accounting program using the accounting optional add-on QBI or PTI. Please refer to the Help files for the optional add-on you are using.

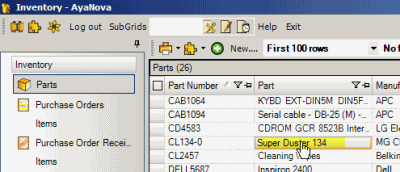

View an existing Part by selecting the Part Number or Part Name in the part grid



Partsgrid2



The Parts grid displays columns regarding the part itself, and records for each part entered.



This grid does not display other columns referring to inventory of the part, nor what workorders selected in, etc. This grid only displays columns from the Part entry screen



Note that you can also localize labels to display whatever text you want - see also: Localize field labels



And you can set what columns you want to display in the grid - see also: Setting what columns display in a grid





Security Group internal object: Object.Part

Forbidden: User of that security group can not access the Parts grid nor entry screen

Read Only: User can view the Parts grid and entry screen but can not create or edit

Read/Write: User can view the Parts grid and create and edit

Read/Write/Delete: User can view the Parts grid, and create, edit and delete





Part

Displays the Part name

Select to open the part entry screen

Part Number

Displays the Part number

Select to open the part entry screen

Part Category


Select to open the Part Categories subgrid

Manufacturer


Select to open the Vendor's entry screen

Wholesaler


Select to open the Vendor's entry screen

Alternative Wholesaler


Select to open the Vendor's entry screen

Unit of Measure


Select to open the Unit of Measure subgrid

Part Assembly


Select to open the Part Assemblies subgrid

UPC



Manufacturer Number



Wholesaler Number



Alternative Wholesaler Number



Cost



Retail



Track Serial Number



Active



Custom 1



Custom 2



Custom 3



Custom 4



Custom 5



Custom 6



Custom 7



Custom 8



Custom 9



Custom 0
